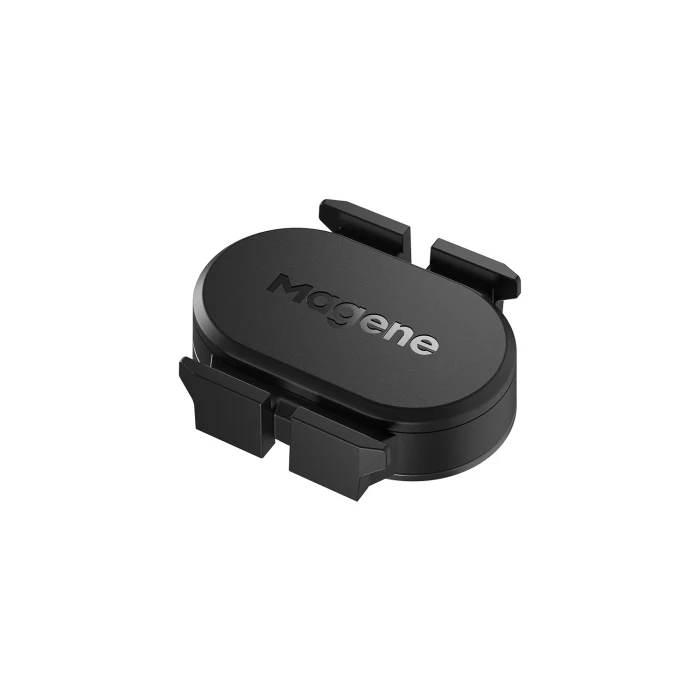

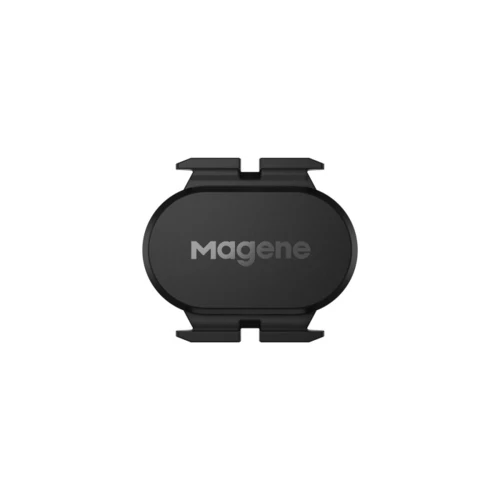

Magene Speed/Cadence Dual Sensor

The third generation S314 speed/cadence dual mode sensor features an elegant design, an anti-loss strap, reliable waterproofing, long battery life, and easily switchable dual modes, ensuring a superior user experience.

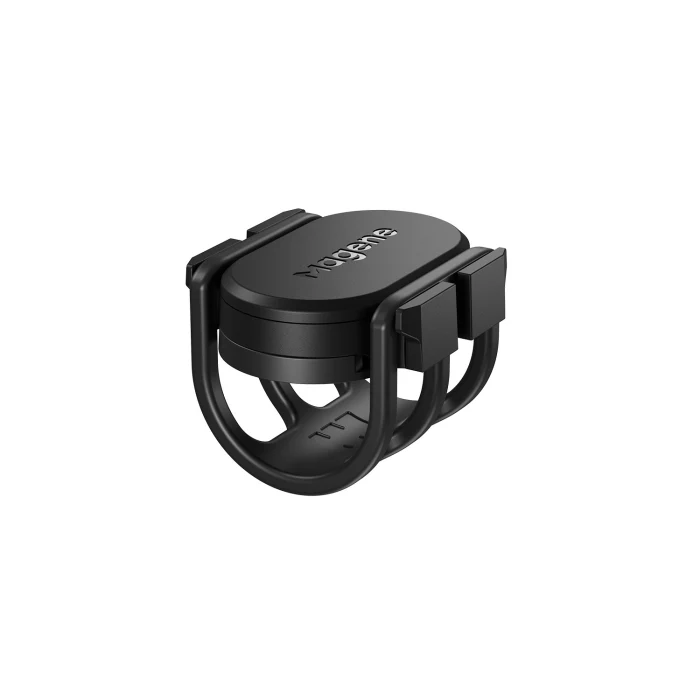

Brand-new Anti-loss Strap, Double Settled Design

Double settled design helps to avoid loss even if one part is broken.

Fully Upgraded, More Compact

The third generation S314 is 12% lighter in weight, 10% smaller in volume, and thinner overall for better compatibility with a larger range of bikes.

Multiple Functions

The S314 supports both ANT+™ and Bluetooth speed and cadence sensing.

Please Note: Only one mode (either speed or cadence) can be active at one time. To obtain both speed and cadence data simultaneously, two sensors need to be installed.

Dual Protocols, Compatible with Mainstream Devices

ANT protocol compatible: Magene, Garmin, WAHOO, Bryton, XOSS, IGPSPORT, and other bike computers and watches that support ANT+™ protocol

Bluetooth protocol compatible: OnelapFit, Onelap, ZWIFT, CYCLEMETER, OPENRIDER, WAHOO FITNESS, Suunto, RideWithGPS, TrainerRoad, The Sufferfest, Komoot, Openrider, Kinomap, Peloton, Rouvy, Fulgaz and other sports apps and watches that support standard Bluetooth protocols.

IP66 Waterproof

The S314 sensor features a close fitting sealing rubber ring and an upgraded contact point between the card slot and the battery, providing strong waterproof performance. This ensures reliable operation even when cycling in rainy conditions.

Specifications:
Product Size	35.74*30.80*8.20mm
Operating Temperature	-10 to 50°C
Modes	Speed / Cadence
Switching Mode	App setting, re-install the battery
Battery Model	CR2032
Waterproof Grade	IP66
Wireless Interface	ANT+™ Bluetooth 5.0
Weight	7.7g (including battery)
Battery Life	500h in operating state (affected by temperature and other operation condition)
